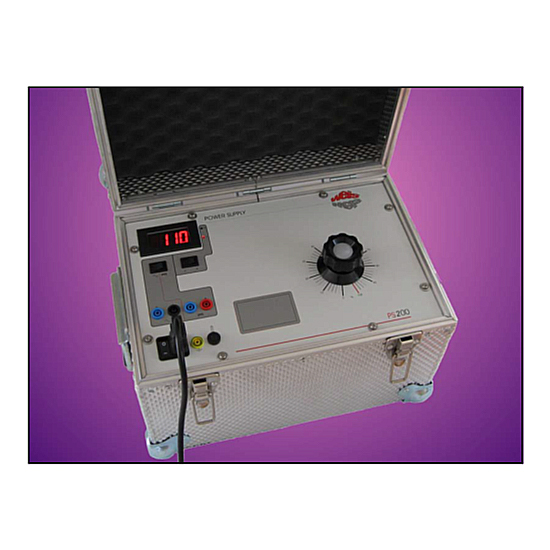

OUTPUT

• AC Power: 0 to 280V AC

50A peak

• DC Power: 0 to 280V DC

50A peak

• Ripple: < 2%

OUTPUT CHARACTERISTICS
DC Breaker Coils:

• No-load Voltage Current Load Dependency
• 24V 10A < 5%
• 48V 10A < 3%
• 55V 10A < 3%
• 110 / 120V 8A < 2%
• 220 / 240V 3A < 2%
• 280V 1.5A < 2%

AC Breaker Coils:

• Voltage Range Load Current Load Interval
• 0-280V AC 10A max. 30min max.

DC Spring Charging:

• Open Circuit Voltage Current Load Voltage Max. Load Interval
• 24V 20A 20V 30s
• 48V 15A 40V 60s
• 55V 20A 40V 30s
• 110 / 120V 15A 95V 40s
• 220 / 240V 10A 190V 30s
• MEASUREMENT
• Readout: 3 digit backlight LCD display
• Resolution: 1V steps
• Displayed Values: AC Voltage
• AC Current
• DC Voltage
• DC Current
• Accuracy: +/- 1% of displayed value
• OPERATING VOLTAGES
• Fixed Prime Power: 220 to 240V 50/60Hz or 110 to 120V 50/60Hz
• Operating Temperature: -20ºC to +70ºC (-4ºF to +158ºF)
• Humidity: 0 to 97% RH non-condensing
• Isolation: 2kV rms for 1 minute

Surge Withstand

• Transient: To IEC 801-5. 1.2/50mS
• Common Mode: Severity level class 4. Series Mode: Severity level class 3
• Fast Transient Burst: To IEC 801-4 level 3
• RFI Immunity: To IEC801-3 level 3. 10V/m 26-1000MHz
• Emissions: To EN50081-1: 1992
• MECHANICAL DETAILS
• Weight: > 27Kg
• Carry Case: Reinforced aluminium, 340mm x 240mm x 150mm
