| 產品介紹 |
 |
---> ■ 斷路器測試設備 - Circuit Breaker Test |

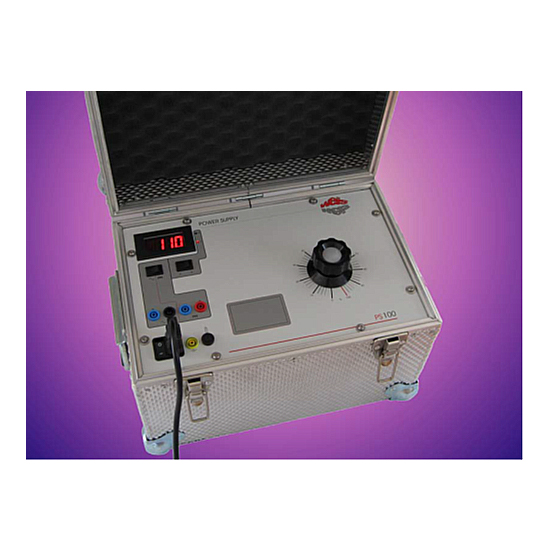

| ------> ◆ AC/DC電源供應器 - Power Supply |
| |
|
| |
|
| |
|
| |
|
| |
| 產品規格： |
OUTPUT
- AC Power: 0 to 280V AC
- 20A peak
- DC Power: 0 to 280V DC
- 20A peak
- Ripple: < 2%
MEASUREMENT
- Readout: 3 digit backlight LCD display
- Resolution: 1V steps
- Displayed Values:
AC Voltage
AC Current
DC Voltage
DC Current
- Accuracy: +/- 1% of displayed value
- Prime Power: 110 to 240V 50/60Hz
- Operating Temperature: -20ºC to +70ºC (-4ºF to +158ºF)
- Humidity: 0 to 97% RH non-condensing
- Isolation: 2kV rms for 1 minute
- Surge Withstand
- Transient: To IEC 801-5. 1.2/50μS
- Common Mode: Severity level class 4. Series Mode: Severity level class 3
- Fast Transient Burst: To IEC 801-4 level 3
- RFI Immunity: To IEC801-3 level 3. 10V/m 26-1000MHz
- Emissions: To EN50081-1: 1992
- Weight: < 20Kg
- Carry Case: Reinforced aluminium, 340mm x 240mm x 150mm
|
|
| |
|
| |
|
| |
|
|
