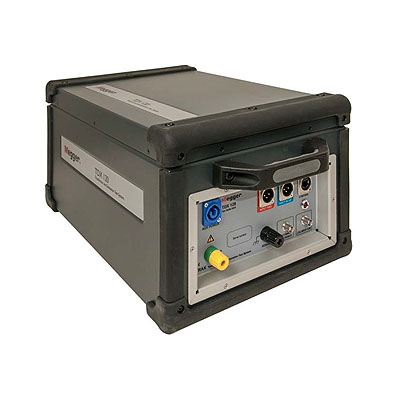

Measurements

• Voltage    0 - 12 kV
• Current    0 - 5 A
• Capacitance    0 – 100 µF
• Inductance      6 H – 10 MH
• Power      0 – 1 MW
• Power factor   0 – 1/0 – 100% Dissipation factor  0 – 100/0 – 10000% Accuracy
• Internal generator
• Capacitance    ±0.5% of reading + 0.1 pF
• Dissipation factor    ±0.005%, Ix > 15 uA to 10 mA,
• Utest > 300V
• Inductance      ±0.5% of reading + 1 mH
• Watt loss ±1% of reading + 1 mW
• External generator and reference
• Capacitance    ±0.05% of reading + 0.1 pF
• Dissipation factor    ±0.005%, Ix 15 uA to 10 mA, Iref > 15 uA
• ±0.02%, Ix > 10 mA, Iref > 15 uA
• Inductance      ±0.05% of reading + 1 mH
• Watt loss ±1% of reading + 1 mW
• Noise immunity
• Electrostatic    15 mA induced noise into any test lead
• with no loss of measurement accuracy at maximum interference to specimen current of 20:1
• Signals below 45 Hz or above 200 Hz with derating
• Output

0-12 kV AC
0-250 V AC
500 mA
300 mA
200 mA
100 mA

45-70 Hz
1-500 Hz
30 seconds
4 minutes
30 minutes continuous
