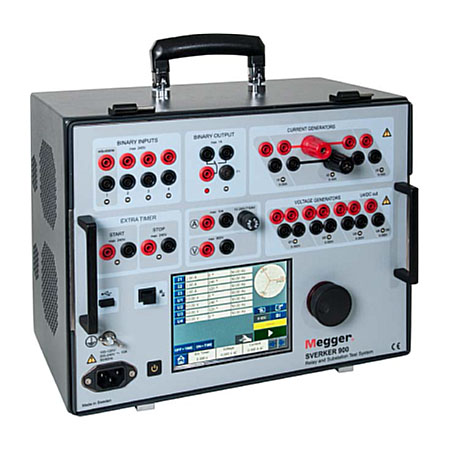

Measurement section

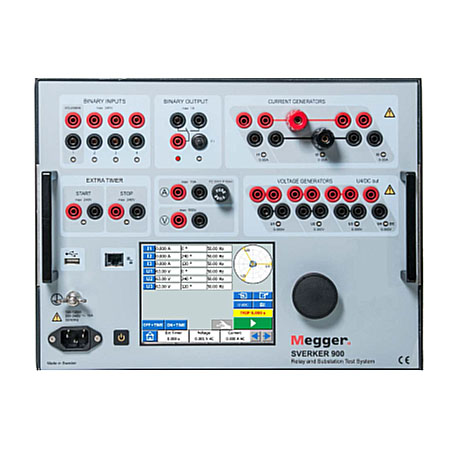

BINARY INPUTS 1, 2, 3 ,4 and EXTERNAL TIMER Start/Stop

• Number 6
• Type Dry or wet contacts max, 240 V AC or
• 340 V DC
• Galvanic Isolation Galvanically separated
• Max measuring time 35 minutes
• Debounce filter Settable, 0 to 999 ms
• BINARY INPUT 1 Adjustable threshold and hysteresis

Timer

• Range Inaccuracy
• 0 – 50 ms ≤ 1 ms
• 50 – 500 ms ≤ 2 ms
  • 500 ms ≤ 1%
• Resolution 1 ms

Voltmeter

• Measurement method: AC true RMS, DC mean value
• Insulation 900 V, 1273 Vpeak
• Input rating 900 V
• Inaccuracy
• Ranges DC
  • V ±0.5% of reading + 3 mV
• 0-10 V ±0.5% of reading + 7 mV
• 0-100 V ±0.5% of reading + 30 mV
• 0-900 V ±0.5% of reading + 300 mV
• Ranges AC
  • V ±1% of reading + 5 mV
• 0-10 V ±1% of reading + 10 mV
• 0-100 V ±1% of reading + 50 mV
• 0-900 V ±1% of reading + 300 mV
• Resolution 1 mV
• Frequency
• Range 10 Hz – 600 Hz
• Inaccuracy < 0.01%
• Resolution < 10 mHz

Ammeter

• Measurement method: AC true RMS, DC mean value
• Inaccuracy
• Ranges DC
• 0-200 mA ±0.5% of reading + 2 mA
• 0-1.5 A ±0.5% of reading + 3 mA
• 0-10 A ±0.5% of reading + 10 mA
• Ranges AC
• 0-200 mA ±1% of reading + 2 mA
• 0-1.5 A ±1% of reading + 3 mA
• 0-10 A ±1% of reading + 20 mA
• Resolution 1 mA
• Frequency
• Range 10 Hz – 600 Hz
• Inaccuracy < 0.01%
• Resolution < 10 mHz

Extra measurements
Power factor and phase angle measurements

• Ranges Resolution Inaccuracy
• Power factor cosϕ -0.01 (cap) to 1
• to +0.01 (ind)
• < 0.01 <0.04
• Phase angle (º) 1) 0. - 360. <0.1. <0.8.
• Impedance and power measurement
• AC Z(Ω), R(Ω),X (Ω), P(W), S(VA), Q(VAR)
• DC R(Ω), P(W)
• Range Up to 999 kX (X=unit)

• Valid with current >1 A and voltage >10 V

BINARY OUTPUTS

• Insulation 250 V AC
• Current 1 A (max)
• Voltage 250 V AC or 120 V DC

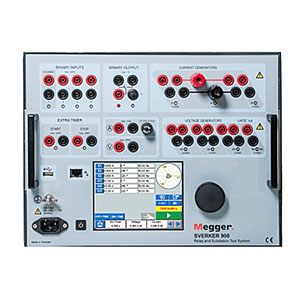

Generation section
VOLTAGE GENERATORS

• Voltage outputs U1, U2, U3 and U4/DC out
• All voltage sources/generators are galvanically separated from each
• other and from ground.
• Floating common return is made by using jumper connectors
• Range
• 4-phase AC 4 x 300 V
• 4-channel DC 4 x 300 V
• Power
• 4-phase AC 4 x 125 VA (max)
• 4-channel DC 4 x 125 W (max)
• Inaccuracy 0.03% range + 0.05% of reading
• Distortion(THD+N)1) < 0.14% typical (0.25% max)
• Resolution 10 mV
• Phase
• Angle range 0. - 360.
• Inaccuracy 2) < 0.5. (at 50 - 60 Hz)
• Resolution < 1.
• Frequency
• Range 10 Hz - 600 Hz
• Inaccuracy 2) <0.03 % (45 Hz - 66 Hz)
• Resolution <10 mHz

CURRENT GENERATORS

• Current outputs I1, I2 and I3
• All current generators are galvanically separated from each other
• and from ground
• Floating common return, is made by using jumper connectors
• Range
• 3-phase AC 3 x 35 A
• At least 15 repetitions: 10 s ON and 20 s OFF
• 3-phase DC 3 x 35 A
• At least 15 repetitions: 10 s ON and 20 s OFF
• 3-phase AC 3 x 20 A continuous
• 3-phase DC 3 x 17 A continuous
• Power
• 3-phase AC (max) 3 x 250 VA
• 3-phase DC (max) 3 x 250 W
• Inaccuracy < 0.5 % of reading, in range 0.5 A – 35 A
• < 8 mA in range 0 A – 0.5 A
• Distortion(THD+N)1) < 0.13% typical (0.25% max)
• Resolution 1 mA
• Compliance voltage ≤50 Vrms
• Phase
• Angle range 0. - 360.
• Inaccuracy 2) < 0.2. (50 – 60 Hz)
• Resolution < 1.
• Frequency
• Range 10 Hz - 600 Hz
• Inaccuracy 2) < 0.03 % (45 – 66 Hz)
• Resolution < 10 mHz
