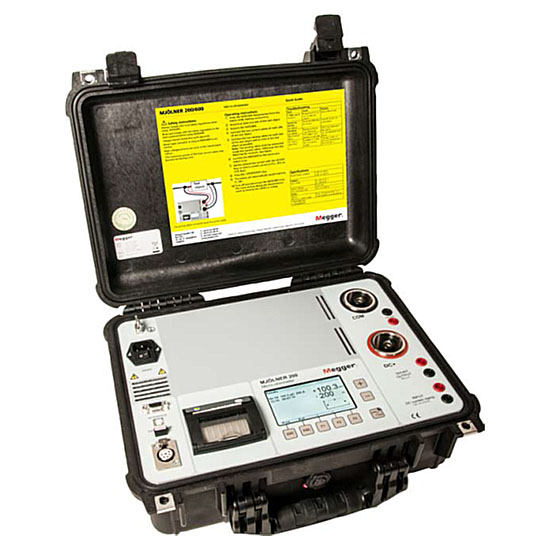

Measurement section

• Range 0 – 999.9 mΩ
• Resolution  0.01 μΩ below 100 μΩ

0.1μΩ below 1.0 mΩ
1μΩ below 10 mΩ

• μΩ below 100 mΩ

100 μΩ below 1000 mΩ
Inaccuracy Typ. Max.

• 100 A, /25oC, ±0.2 μΩ
• 50 – 200 A /10 – 40oC, ±0.3 μΩ
• Current shunt 200 A, 60 mV
• Sense ranges 0-2 mV, 0-20 mV, 0-200 mV, 0-5 V

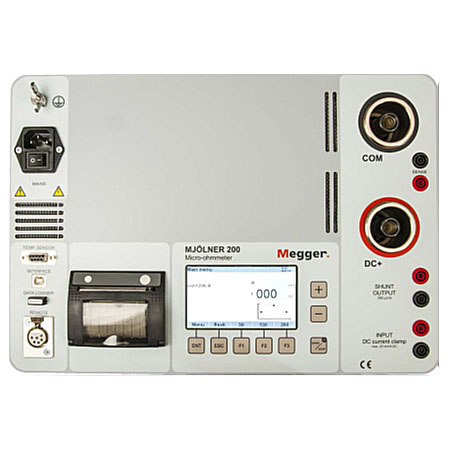

Outputs
DC+ / COM

• Range 5 – 200 A DC (steps of 1 A)
• Max. output voltage 5.25 V at 200 A
• Max. ripple 80 mVpp, 28.3 mVrms
• at 0 - 50 °C (+32°F to +122°F)

Max. load capacity*)

• Continuous 200 A

OUTPUT 300 μV/A

• Shunt output From internal shunt 60 mV at 200 A
• Inaccuracy ±1%

Inputs

• SENSE Max. 20 V between terminals and to
• protective earth (ground)

INPUT
DC current clamp

• Max. 20 V between terminals and to
• protective earth (ground)
• Input sensitivity Adjustable 0.1 – 20 mV/A
• Input impedance >1 MΩ

General

• Mains voltage 100 - 120 / 200 - 240 AC, 50 / 60 Hz
• Input current (max) 13 A at 100 V, 6 A at 230 V (3 sec)
• Dimensions 410 x 330 x 175 mm (16.1” x 13” x 6.9”)
• Weight 7.6 kg (16.8 lbs)
• Display LCD and LED
• Thermal paper roll Width 57.5 mm, diameter 32 mm
