■ 斷路器測試設備 - Circuit Breaker Test

------>

◆ 斷路器動作時間測試器 - Circuit Breaker Timing Tester

產品名稱：

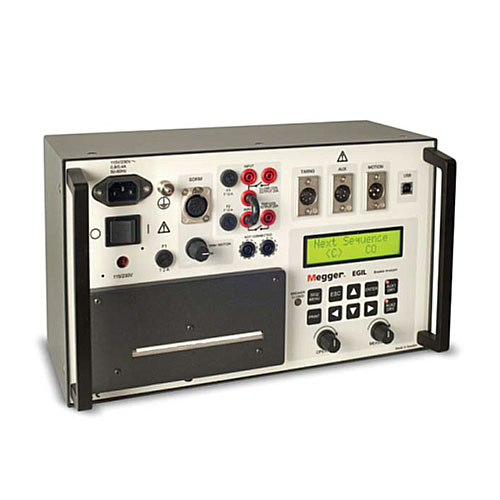

斷路器動作時間測試器 Circuit Breaker Timing Tester

廠牌：Megger

型號：EGIL

產地：瑞典

General：

Mains voltage 115 / 230 V AC (switchable), 50 / 60 Hz Power consumption 100 VA (max) Display LCD Available languages English, German, French, Spanish, Swedish

Time measurement：

Measurement time 1 to 100 s Resolution 0.1 to 10 ms Number of channels 3 with common ground Time base inaccuracy 0.05% of the reading ± resolution Status thresholds Closed < 10 Ω ±20% Resistor 10 Ω ±20% to 3 kΩ ±20% Open > 3 kΩ ±20% Open circuit voltage 24 V ±20% Short circuit current 100 mA ±20%

AUX 1&2：

Number of channels 2, galvanically isolated

Contact-sensing (Dry)：

Status thresholds Closed < 600 Ω ±30% Open > 600 Ω ±30% Open circuit voltage 20 V ±20% DC Short circuit current 25 mA ±20%

Voltage sensing (Wet)：

Status thresholds Open indication < 8 V (polarity insensitive) Close indication > 13 V (polarity insensitive) Working voltage 250 V AC / DC

Current measurement：

Range ±25 A per channel Resolution 25 mA Inaccuracy 1% of the reading ±100 mA Working voltage 250 V AC / DC

Dimensions：

Inaccuracy 1% of the reading ±100 mA Instrument 360 x 210 x 190 mm(14.2” x 8.3” x 7.5”) Transport case 420 x 300 x 230 mm (16.5” x 11.8” x 9.0”) Weight 6.3 kg (14 lbs). 10 kg (22 lbs) with accessories and transport case
